Potential carbon stocks

library(terra)
library(sf)
library(randomForest)
library(tidyverse)

Prepare data

Get AGB values by year in undisturbed forests.

area <- list.files("data/umrbpl/", full.names = TRUE, pattern = "shp$") |>
  read_sf() |>
  st_transform(crs = "EPSG:4326")
agb_maps <- list.files(
  "data/biomass/", "umrbpl_ESACCI-BIOMASS-L4-AGB-MERGED",
  full.names = TRUE
) |>
  rast() |>
  mask(area)
years <- list.files("data/biomass/", "umrbpl_ESACCI-BIOMASS-L4-AGB-MERGED") |>
  strsplit("-") |>
  lapply(function(x) as.numeric(x[7])) |>
  unlist()
tmf_maps <- list.files("data/tmf/", "UMRBPL", full.names = TRUE) |>
  grep(pattern = paste(years, collapse = "|"), value = TRUE) |>
  rast() |>
  # resample to agb resolution
  resample(agb_maps, method = "modal") |>
  mask(area)
names(agb_maps) <- years
names(tmf_maps) <- gsub("Dec", "", names(tmf_maps))
coords <- data.frame(crds(agb_maps)[sample(nrow(crds(agb_maps)), 1e4), ])

data <- lapply(list(agb_maps, tmf_maps), function(r) {
  terra::extract(r, coords, ID = FALSE, xy = TRUE) |>
    pivot_longer(cols = as.character(years), names_to = "year") |>
    mutate(year = as.numeric(year))
}) |>
  set_names(c("agb", "tmf")) |>
  bind_rows(.id = "data") |>
  pivot_wider(
    id_cols = c("x", "y", "year"),
    names_from = "data", values_from = "value"
  )

Explanatory variables

set.seed(123)
data <- c(
  "data/srtm/topo_variables.tif",
  "data/chelsa/climate_variables.tif",
  "data/wind/UMRBPL_wind-speed_10m.tif",
  "data/osm/dist_to_road.tif",
  "data/osm/dist_to_water.tif"
) |>
  lapply(function(r) {
    r |>
      rast() |>
      mask(area) |>
      resample(agb_maps, method = "mean")
  }) |>
  rast() |>
  terra::extract(data[, c("x", "y")], ID = FALSE) |>
  rename(dist_to_road = elevation.1) |>
  rename(dist_to_water = elevation.2) |>
  bind_cols(data)

Random forest

rf_data <- data |>
  filter(year == 2022) |>
  rename(wind = `PHL_wind-speed_10m`) |>
  select(
    agb, elevation, slope, aspect, twi, mean_temperature,
    mean_precipitation, wind, tmf, dist_to_road, dist_to_water
  ) |>
  drop_na()
type <- c("cal", "eval")[1 + rbinom(nrow(rf_data), 1, 0.2)]

rf_agb <- randomForest(agb ~ .,
  data = rf_data[type == "cal", ],
  importance = TRUE
)
save(rf_agb, file = "models/rf_agb.rda")

load("models/rf_agb.rda")
predictions <- predict(rf_agb, newdata = rf_data[type == "eval", ])
errors <- rf_data$agb[type == "eval"] - predictions
rmse <- sqrt(mean(errors^2))
print(paste("RMSE:", round(rmse), "Mg/ha"))

[1] "RMSE: 38 Mg/ha"

r_squared_oob <- rf_agb$rsq[length(rf_agb$rsq)] * 100
print(paste(
  "Out-of-Bag R-squared (% Var Explained):",
  round(r_squared_oob), "%"
))

[1] "Out-of-Bag R-squared (% Var Explained): 51 %"

# Calculate R-squared on the test set
ss_total <- sum((rf_data$agb[type == "eval"] -
                   mean(rf_data$agb[type == "eval"]))^2)
ss_residual <- sum((rf_data$agb[type == "eval"] - predictions)^2)
r_squared_test <- 1 - (ss_residual / ss_total)
print(paste("Test Set R-squared:", round(r_squared_test * 100), "%"))

[1] "Test Set R-squared: 61 %"

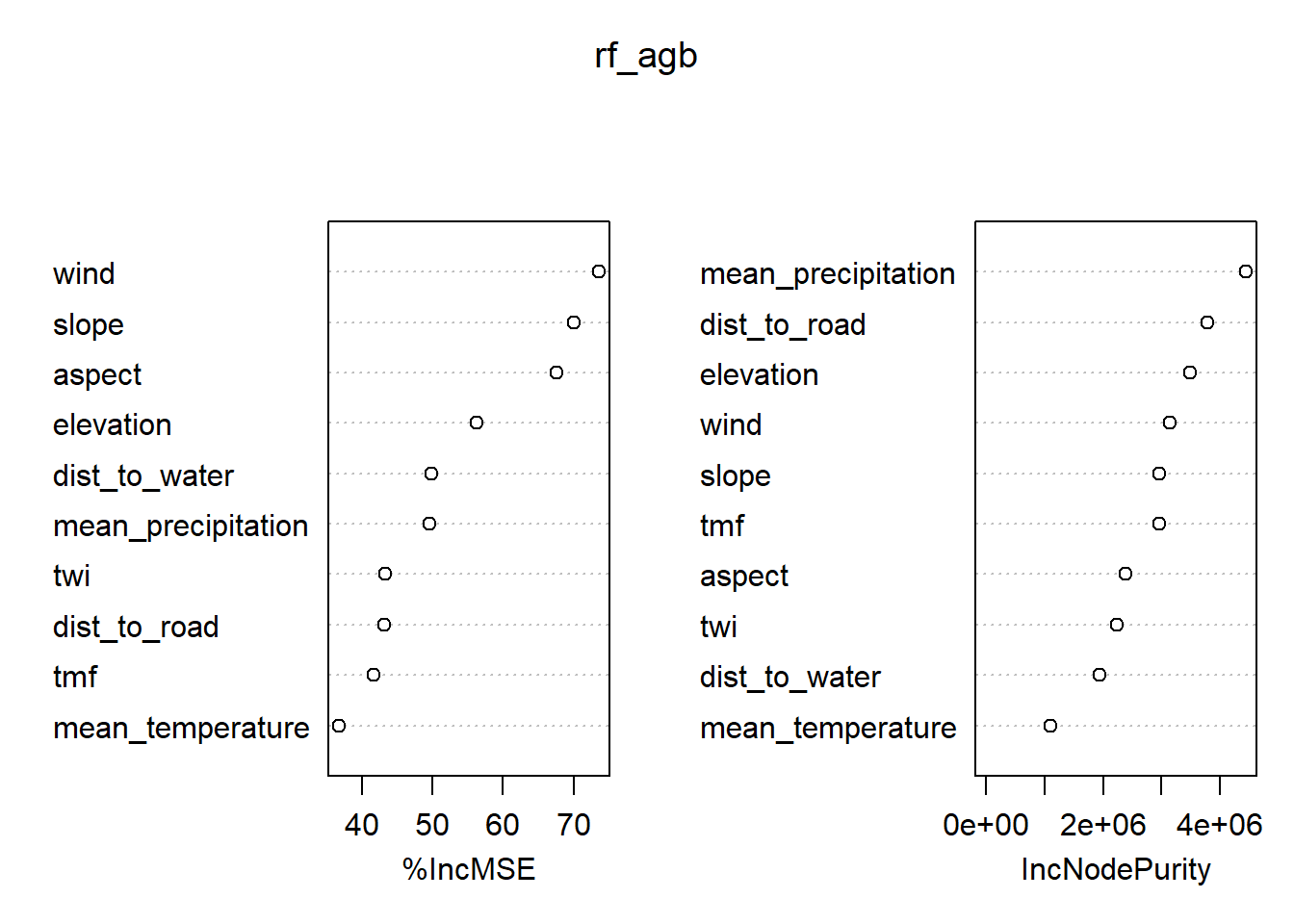

varImpPlot(rf_agb)

The partial dependence plots are represented below.

data_all <- data |>
  filter(year == 2022) |>
  rename(wind = `PHL_wind-speed_10m`) |>
  select(
    agb, elevation, slope, aspect, twi, mean_temperature,
    mean_precipitation, wind, tmf, dist_to_road, dist_to_water
  ) |> drop_na()

preds <- lapply(colnames(data_all)[-1], function(x) {
  data.frame(
    value = seq(
      min(data_all[[x]]),
      max(data_all[[x]]),
      length.out = 50
    )
  )
})
names(preds) <- colnames(data_all)[-1]
preds <- bind_rows(preds, .id = "var")

partial <- function(model, data, variable, val, quants = c(0.1, 0.5, 0.9)) {
  new_data <- data
  new_data[, variable] <- val
  predict(model, new_data) |>
    quantile(probs = quants)
}
preds |>
  group_by(var, value) |>
  summarise(quant = c("Q10", "Q50", "Q90"),
            pred = partial(rf_agb, select(data_all, -agb), var, value)) |>
  write.csv("models/rf_agb_partial.csv", row.names = FALSE)

data_all <- data[sample(5000),] |>
  filter(year == 2022) |>
  rename(wind = `PHL_wind-speed_10m`) |>
  select(
    agb, elevation, slope, aspect, twi, mean_temperature,
    mean_precipitation, wind, tmf, dist_to_road, dist_to_water
  ) |> drop_na() |>
  pivot_longer(!agb, names_to="var")
read.csv("models/rf_agb_partial.csv") |>
  pivot_wider(names_from = "quant", values_from = "pred") |>
  ggplot(aes(value, Q50)) +
  geom_ribbon(aes(ymin = Q10, ymax = Q90), alpha = 0.1) +
  geom_point(data = data_all, aes(y = agb), alpha = 0.2) +
  geom_line() +
  facet_wrap(~var, scales = "free") +
  theme_classic() +
  theme(legend.position = "none") +
  labs(x = "Variable value",
       y = "Distribution of predicted and observed SOC stocks")

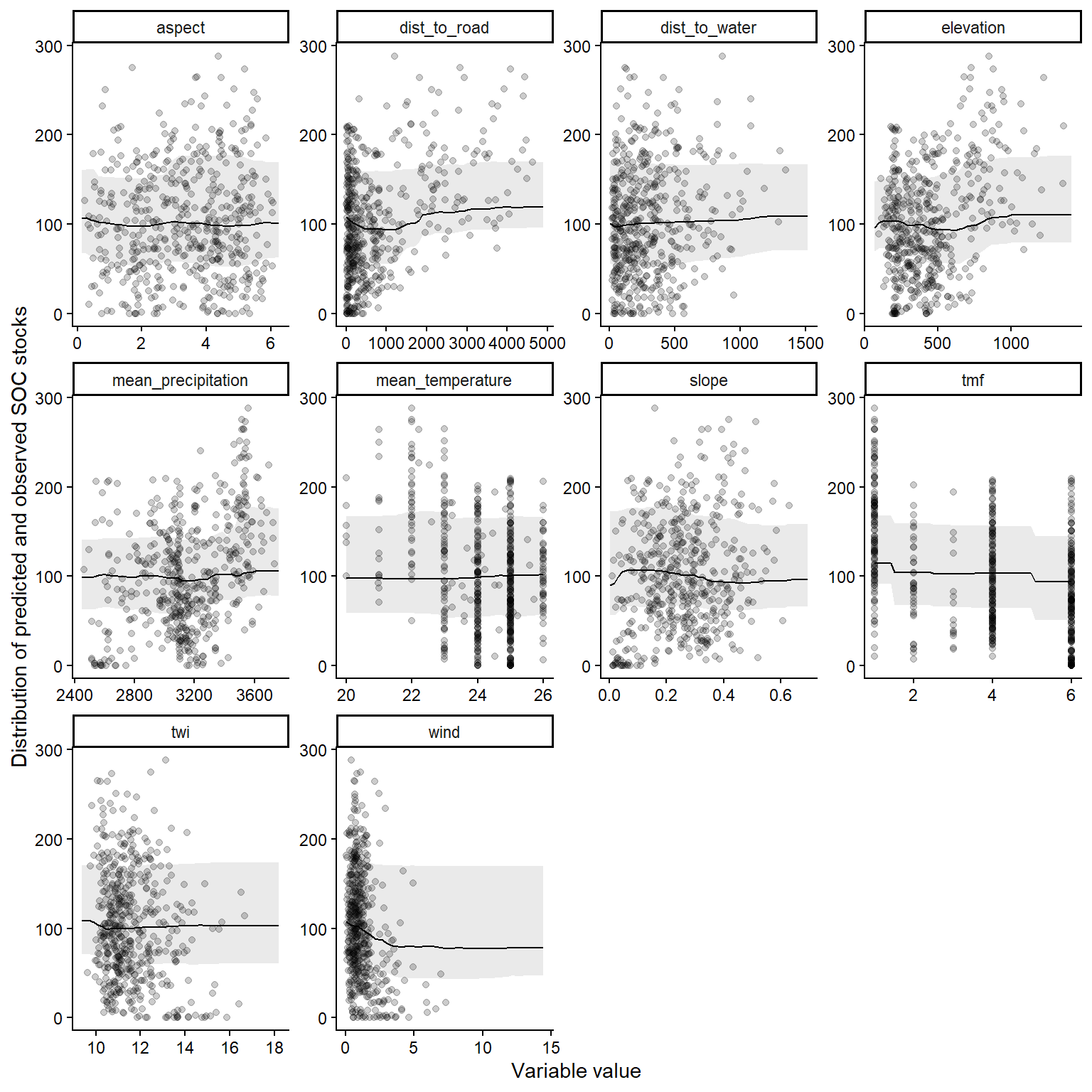

Partial dependence plots showing the effect of individual variables on predicted SOC stocks. Solid lines represent the median predictions, while the grey areas represent the 10–90% quantiles. The points represent observations, with each colour representing a different site.

Spatial cross validation
