Tree height

Code

library(sf)
library(terra)
library(ggplot2)

Data

This dataset was downloaded from Lang, N., Rodríguez, A. C., Schindler, K., & Wegner, J. D. (2021). Canopy top height and indicative high carbon stock maps for Indonesia, Malaysia, and Philippines (Version 1.0) [Data set]. Zenodo. http://doi.org/10.5281/zenodo.5012448

Tree height was estimated by combining Sentinel-2 optical satellite images and GEDI lidar data, using a deep convolutional neural network.

Code

dir_height <- "data/tree_height"
area <- list.files("data/umrbpl/", full.names = TRUE, pattern = "shp$") |>
  read_sf() |>
  st_transform(crs = "EPSG:4326")
if (!dir.exists(dir_height)) dir.create(dir_height)
if (!file.exists(paste0(dir_height, "/canopy_top_height_2020_umrbpl.tif"))) {
  zen4R::download_zenodo(
    "10.5281/zenodo.5012447", dir_height,
    "canopy_top_height_2020_philippines.tif"
  )
  paste0(dir_height, "/canopy_top_height_2020_philippines.tif") |>
    rast() |>
    crop(area) |>
    mask(area) |>
    writeRaster(paste0(dir_height, "/canopy_top_height_2020_umrbpl.tif"))
}

Code

tmf <- list.files("data/tmf", "UMRBPL", full.names = TRUE)[1:31] |>
  rast() |>
  crop(area) |>
  mask(area)
height <- rast(paste0(dir_height, "/canopy_top_height_2020_umrbpl.tif")) |>
  resample(tmf, method = "average")
# age of secondary forests in 2020
tmf_sec_age <- mask(x = tmf, ifel(tmf[[31]] == 4, 1, NA)) |>
  app(\(x) {
    if (any(!is.na(x) & x != 4)) {
      length(x) - max(which(x != 4))
    } else {
      NA
    }
  })
# previous land use
tmf_sec_prev <- mask(x = tmf, ifel(tmf[[31]] == 4, 1, NA)) |>
  app(\(x) {
    if (any(!is.na(x) & x != 4)) {
      x[max(which(x != 4))]
    } else {
      NA
    }
  })
# create complete dataframe
df_height <- c(tmf[[31]], height, tmf_sec_age, tmf_sec_prev) |>
  as.data.frame() |>
  subset(!is.na(Dec2020))
colnames(df_height) <- c("class", "height", "sec_age", "sec_prev")
df_height$class <- factor(df_height$class)
levels(df_height$class) <- c(
  "Undisturbed", "Degraded", "Deforested",
  "Regrowth", "Water", "Other"
)

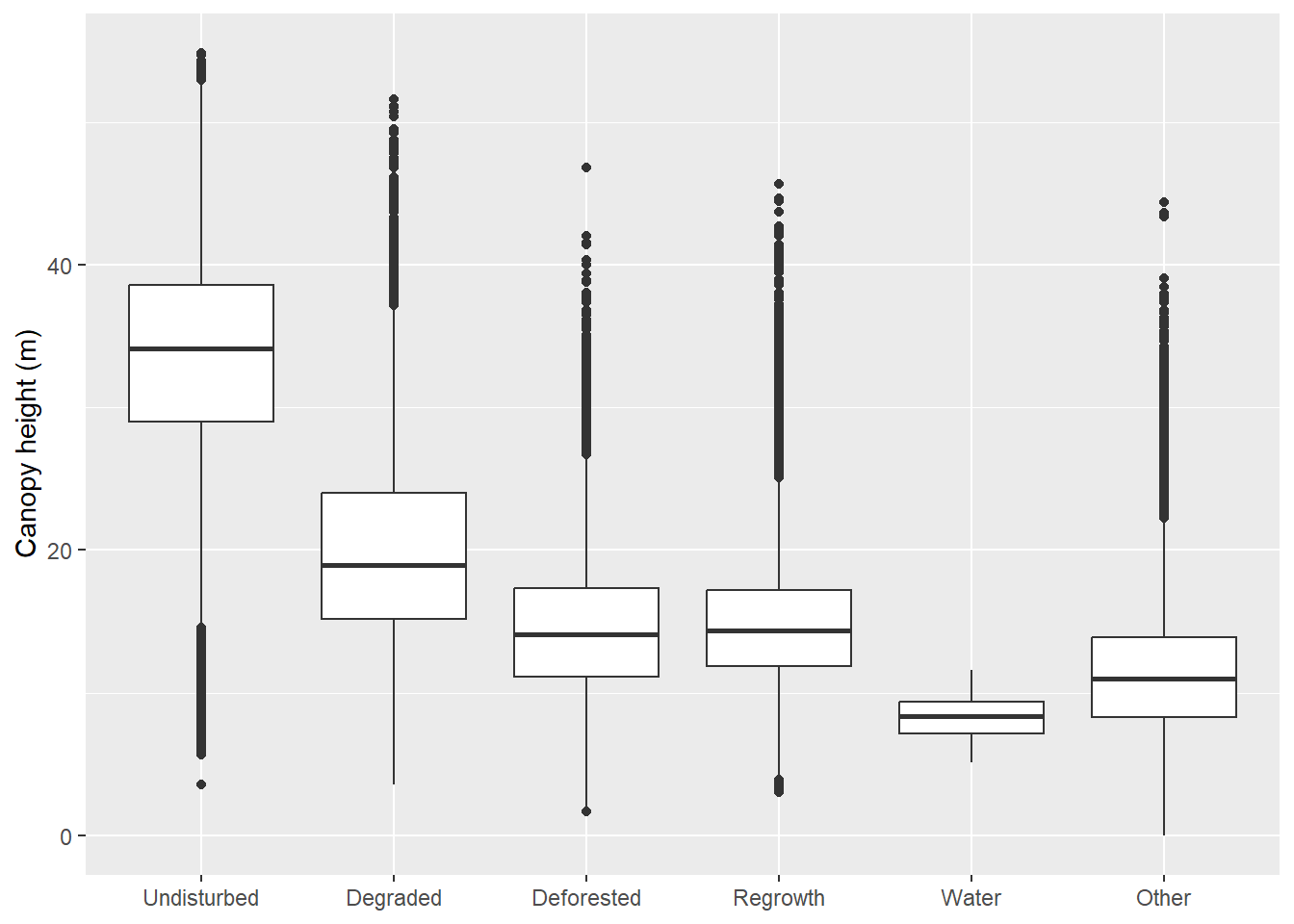

Distribution of canopy height by TMF class

Code

df_height |>
  ggplot() +
  geom_boxplot(aes(x = class, y = height)) +
  labs(x = NULL, y = "Canopy height (m)")

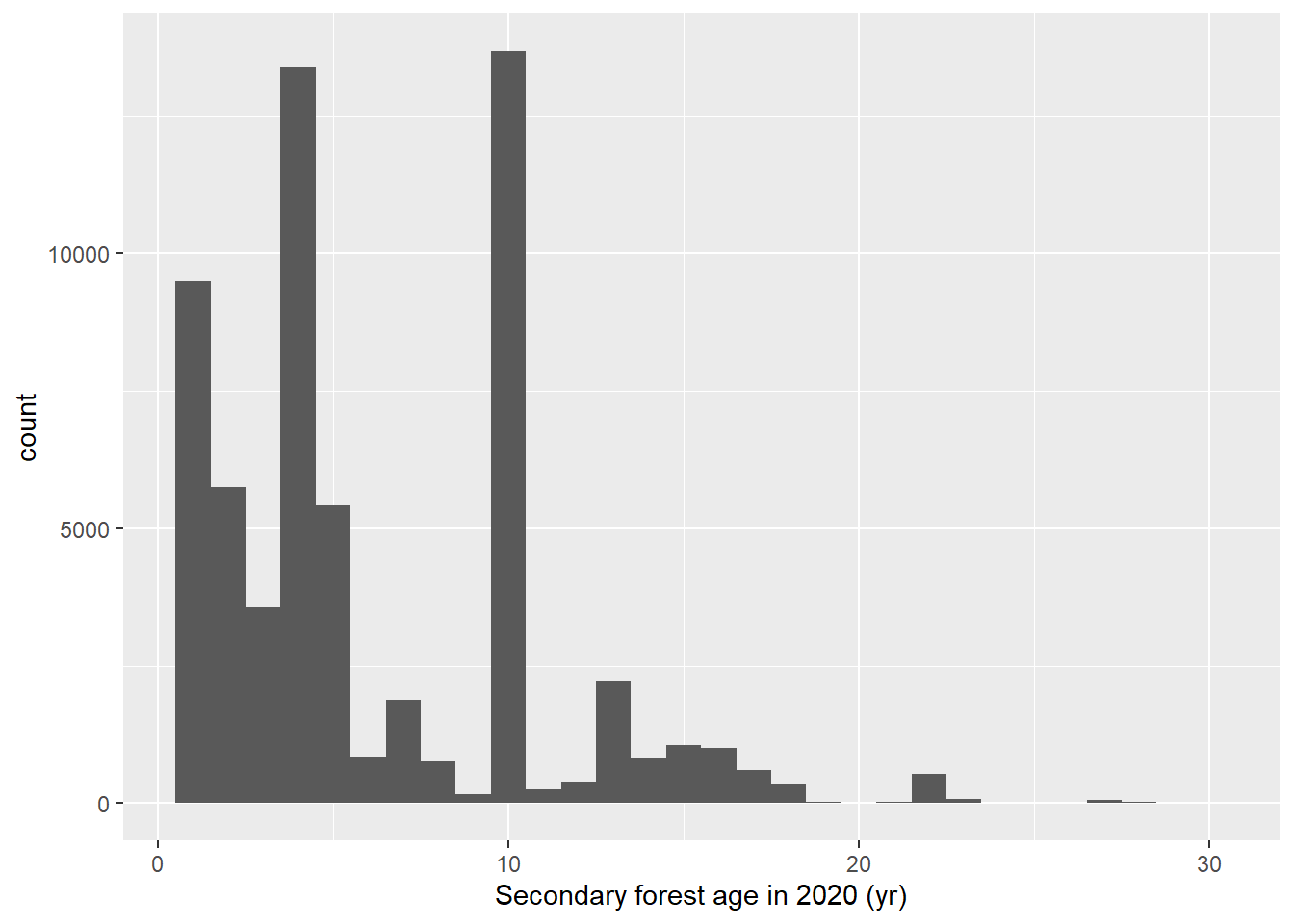

Canopy height changes with TMF secondary forest age

Code

df_height |>
  subset(!is.na(sec_age)) |>
  ggplot() +
  geom_histogram(aes(x = sec_age)) +
  labs(x = "Secondary forest age in 2020 (yr)")

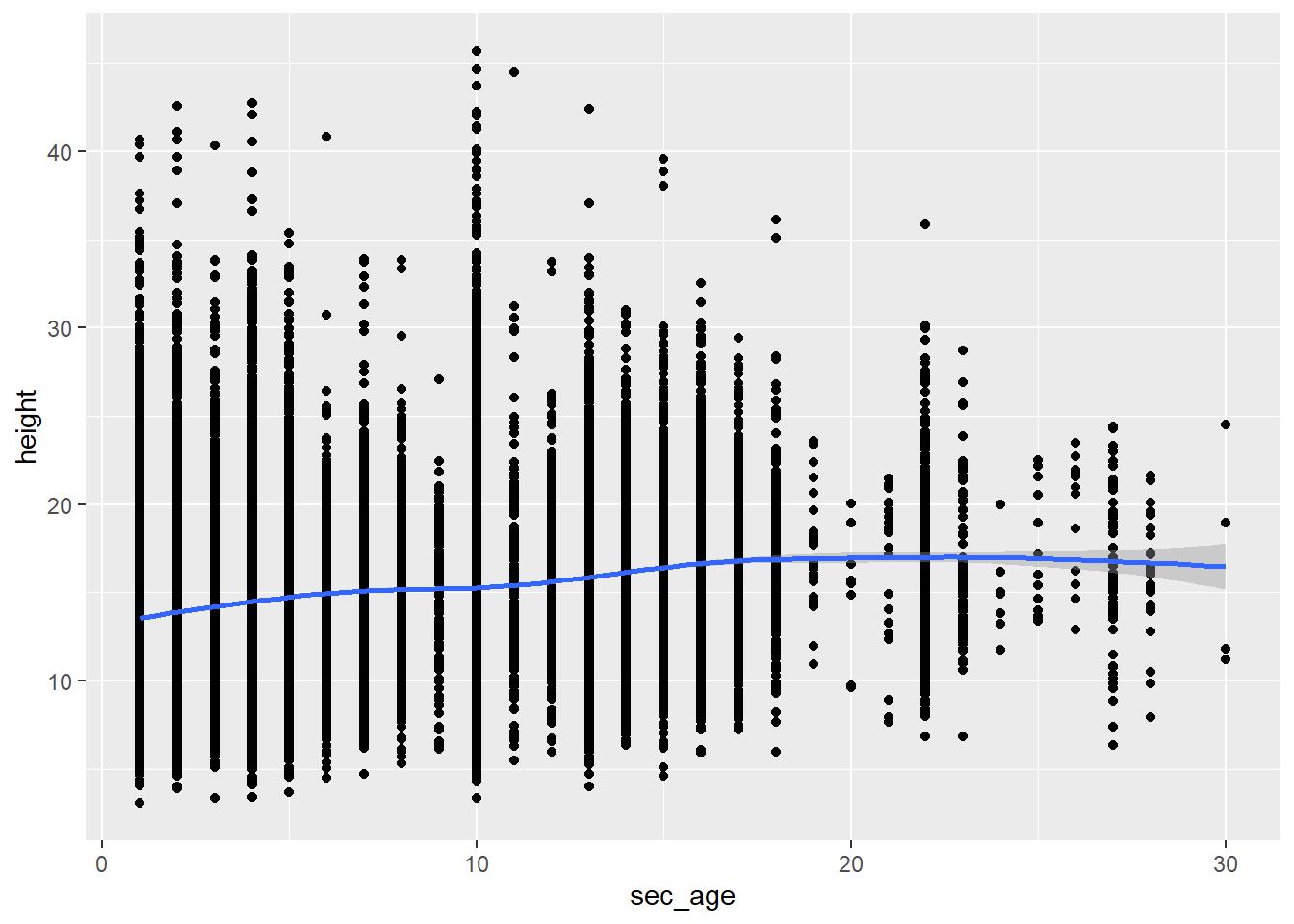

Code

df_height |>
  subset(!is.na(sec_age)) |>
  ggplot(aes(sec_age, height)) +
  geom_point() +
  geom_smooth()
